Connolly Dowel Cradles

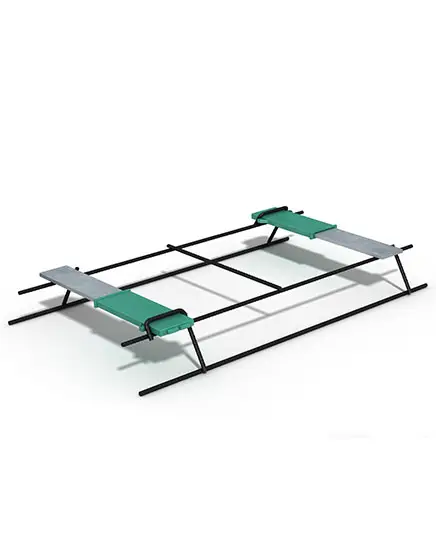

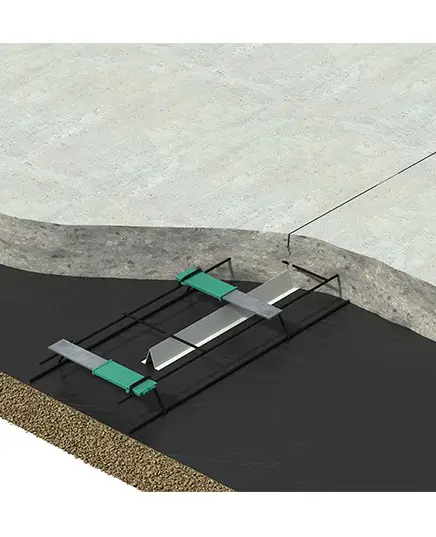

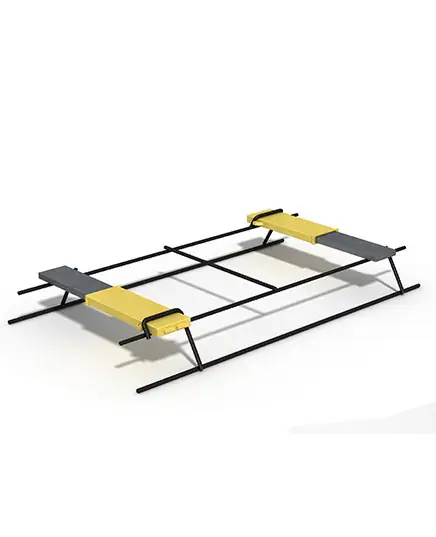

Connolly dowel cradles are used for load transfer in saw cut contraction joints. They are a welded wire assembly that ensures the horizontal and vertical alignment of dowels at the correct spacing and height.
Maintaining correct alignment of dowels across the joint is recognised as being the most important aspect of forming a dowelled joint.
- Less on site labour required means more accurate estimating & cost control
- Robust design ensures cradles are stable and can withstand the harsh treatment frequently encountered on site
- Ensures accurate horizontal and vertical alignment of dowels during concrete placement
- Dowels supplied welded in place with bond breaker to half of dowel length
- Available for round, square or plate dowels
- Eliminates the need to tie dowels
- Formed from high quality steel for maximum strength and minimal distortion
- Made in standard 3.0m lengths for easy handling and transport
- Standard Connolly dowel cradles are made to suit most common dowel configurations or custom built to suit specific slab designs
Specifications
Code | Dowel Shape |
Dowel Size - mm |
Dowel Finish |
Dowel Spacing |
CKJ-6150BLK | Plate | 50x6x300 | Black | 450 |
CKJ-6150GAL | Plate | 50x6x300 | Galvanised | 450 |
CKJ-10180BLK | Plate | 50x10x300 | Black | 450 |
CKJ-10180GAL | Plate | 50x10x300 | Galvanised | 450 |
